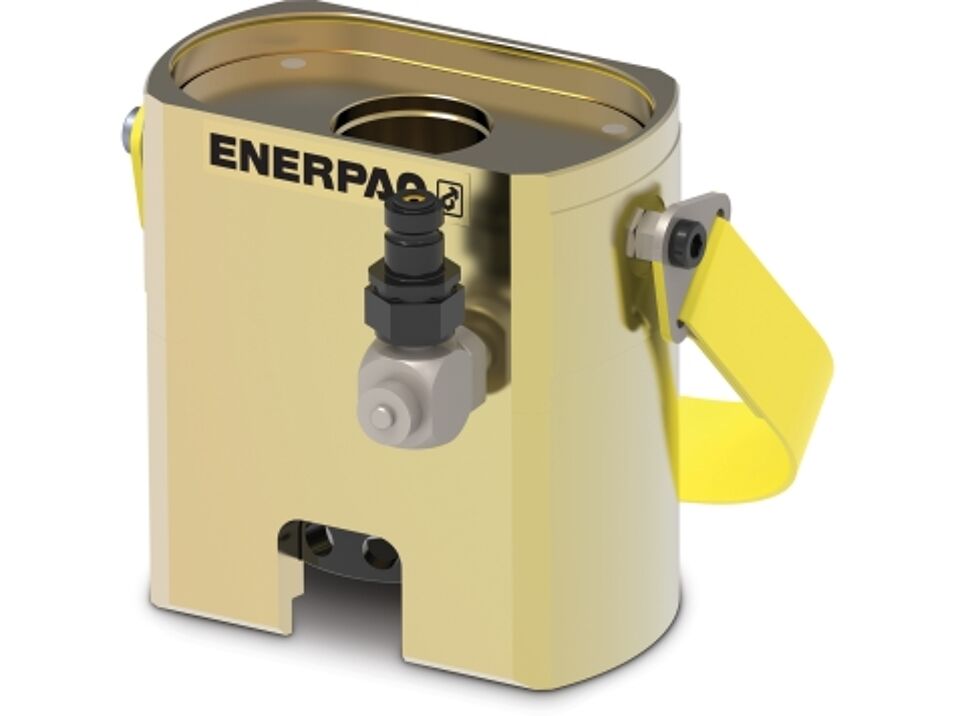

Product afbeelding Enerpac F Tensioner EL FTE7511S
Kopiëren? Art nr. 4333869

Enerpac F Tensioner EL FTE7511S

  • FTE-Series Foundation Bolt Tensioners provide fast and accurate performance in difficult, narrow access foundation tensioning applications
  • Versatile design is compatible with Williams, Dyson, Macalloy and similar studs
  • Ideal solution that fits both standard and narrow access applications
  • Similar to Standard Foundation Tensioners, Elliptical tensioners were designed specifically for foundation fastening applications on wind towers, and utilize the existing hex nut as a reaction point in order to eliminate thread fit misalignment.
  • Unlike Standard FTR-Series Tensioners, FTE-Series Tensioners feature an elliptical geometry, which enables fit in narrow access foundation applications, without reducing load capabilities. Operators may access the nut with a Tommy bar rather then employing the use of an offset rundown gear. Elliptical tensioners are ideal for close clearance applications, or as a universal tool that will work in nearly any foundation application, whether standard or narrow access.
  • 1. Max. stroke Indicator: Extends life by helping to prevent over-stroking of cylinder.
  • 2. Long-life seals: For maximum durability and extended service life intervals.
  • 3. Auto-retract piston: Simplifies use and improves speed of operation.
  • 4. Elliptical form: Provides access to close clearance applications.
  • 5. Corrosion protection: Zinc coating provides best-in-class corrosion resistance.
  • 6. Quick-disconnect coupler (not shown): For safe, simple hydraulic connection. OPTIONAL 360° swivel available for additional hose positioning flexibility.
Meer
Eenheid
Aantal (stuks)

Omschrijving

  • FTE-Series Foundation Bolt Tensioners provide fast and accurate performance in difficult, narrow access foundation tensioning applications
  • Versatile design is compatible with Williams, Dyson, Macalloy and similar studs
  • Ideal solution that fits both standard and narrow access applications
  • Similar to Standard Foundation Tensioners, Elliptical tensioners were designed specifically for foundation fastening applications on wind towers, and utilize the existing hex nut as a reaction point in order to eliminate thread fit misalignment.
  • Unlike Standard FTR-Series Tensioners, FTE-Series Tensioners feature an elliptical geometry, which enables fit in narrow access foundation applications, without reducing load capabilities. Operators may access the nut with a Tommy bar rather then employing the use of an offset rundown gear. Elliptical tensioners are ideal for close clearance applications, or as a universal tool that will work in nearly any foundation application, whether standard or narrow access.
  • 1. Max. stroke Indicator: Extends life by helping to prevent over-stroking of cylinder.
  • 2. Long-life seals: For maximum durability and extended service life intervals.
  • 3. Auto-retract piston: Simplifies use and improves speed of operation.
  • 4. Elliptical form: Provides access to close clearance applications.
  • 5. Corrosion protection: Zinc coating provides best-in-class corrosion resistance.
  • 6. Quick-disconnect coupler (not shown): For safe, simple hydraulic connection. OPTIONAL 360° swivel available for additional hose positioning flexibility.
