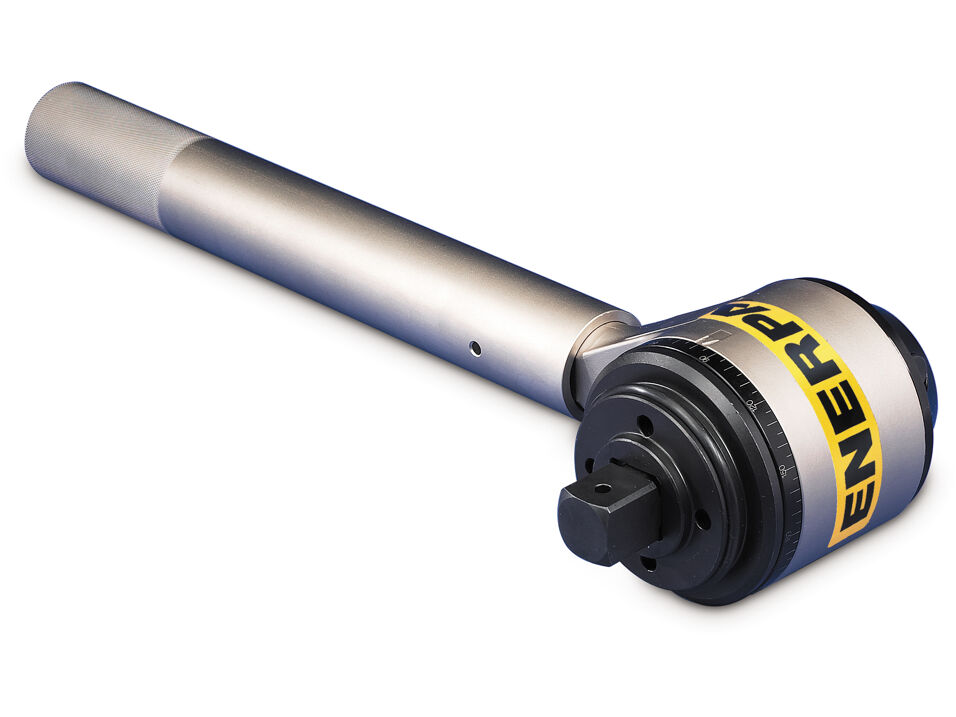

Enerpac krachtvermeerderaar reactiestang 1" 4340 nm

• High efficiency planetary gear sets achieve high output torque from low input torque
• Most models operator protected by anti-backlash device
• Multiplier output accuracy ± 5% of input torque
• Reversible, tighten or loosen bolts
• Reaction bar or reaction plate type
• Angle-of-turn protractor standard on E300 series models
• E300 and E400 torque multiplier series replaceable shear drives provide overload protection of internal power train (one replacement shear drive is included)

Specifications

• Maximum Torque Output: 4340 Nm
• Input Torque: 235 Nm
• Torque Ratio: 18,5 : 1
• Output Male Square Drive Replaceable Shear Drive Model: E393SDK
• Overload Protection: Yes
• Anti Backlash: Yes
• Weight: 6.9 kg
• Height: 165 mm
• Length: 498 mm
• Width: 104 mm

Dimensies (zie tekening)

• D: 103 mm
• L: 498 mm
