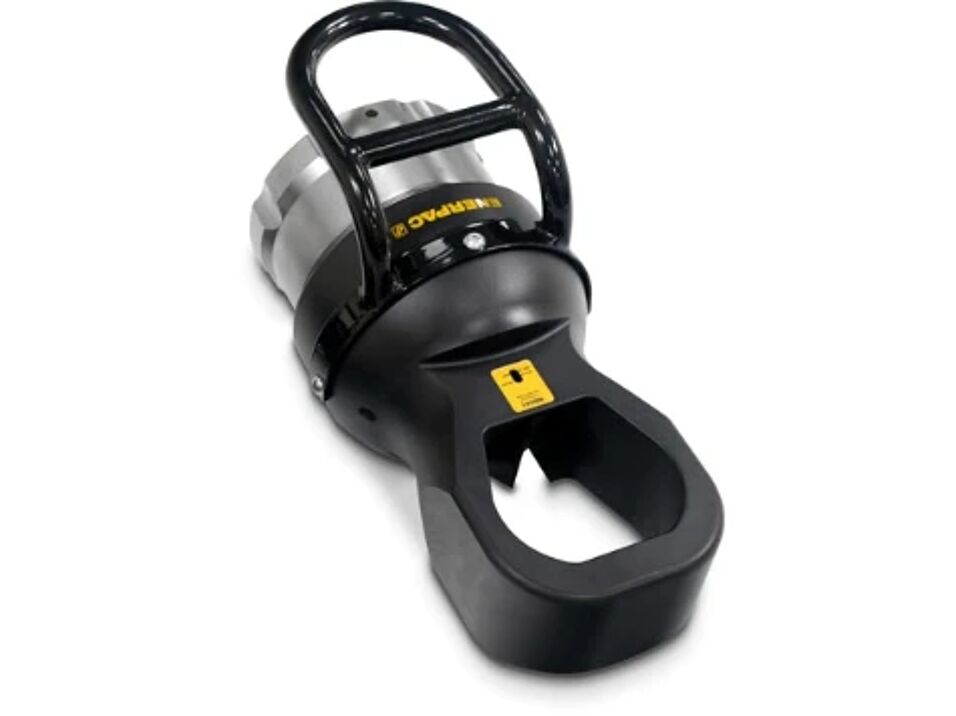

Enerpac Snijkop voor splijters NSPH4

Specifications

• Maximum Operating Pressure: 700 bar
• Capacity: 1733 kN
• Cutter Head Return Type: Single-Acting, Spring Return
• Hexagon Nut Range: 110 - 130 mm
• Bolt Range: M76 - M90 mm
• Maximum Allowable Hardnessto Split: ASTM A194 Gr 2H
• Oil Capacity: 1100 cm³
• Cutting Tip Service Kit Model Number: NSPH4CTK
• Weight: 38 kg

Dimensies (zie tekening)

• D: 235 mm
